Tennis Court Lines [Everything You Need to Know]

Tennis is a sport defined by margins. A match can be won or lost by a fraction of an inch, making the precision of the court’s layout a fundamental requirement for the integrity of the game.

For athletes, facility managers, and enthusiasts, understanding the technical specifications of a tennis court is more than a matter of trivia; it is a prerequisite for fair competition and strategic mastery.

This guide provides a comprehensive analysis of official standards, historical evolution, and the functional logic behind every line on the court.

The Architectural Foundation: Official Dimensions

The modern tennis court is a strictly regulated rectangle designed to provide a uniform experience across the globe, ensuring that a player in London competes on the same spatial footprint as one in New York.

1. Core Length and Width

The standard length of a tennis court is 78 feet (23.77 meters). This measurement is constant regardless of whether the match is singles or doubles.

However, the width of the playing area is determined by the format of the match. For singles competition, the court width is 27 feet (8.23 meters). When transitioning to doubles, the boundaries expand to a width of 36 feet (10.97 meters).

2. The Total Playing Area

While the inner lines define the active boundaries, the total area must also account for the space beyond the lines to ensure player safety and maneuverability.

In professional settings, this includes significant “run-off” space. Within the lines, the total area for a singles match is 2,106 square feet, while a doubles match utilizes 2,808 square feet.

The Perimeter: Defining the Field of Play

The outermost lines of the court serve as the “anchors” of the game’s geometry, dictating the depth and width of every rally.

1. The Baseline

The baseline is the line furthest back on each side of the net, running parallel to it. It marks the outer boundary of the court’s length.

Strategically, the baseline is the focal point of the modern game; it is where players stand to serve and where the majority of groundstroke exchanges occur.

• Strategic Depth: Aggressive baseline players stay close to this line to take the ball early and dictate pace, while defensive specialists may drop several feet behind it to manage high-velocity shots.
• Technical Specifications: The baseline is unique because it is allowed to be thicker than other lines on the court. While standard markings are between 1 and 2 inches wide, the baseline can be up to 4 inches (10 cm) wide to enhance visibility for players and officials during high-speed play.

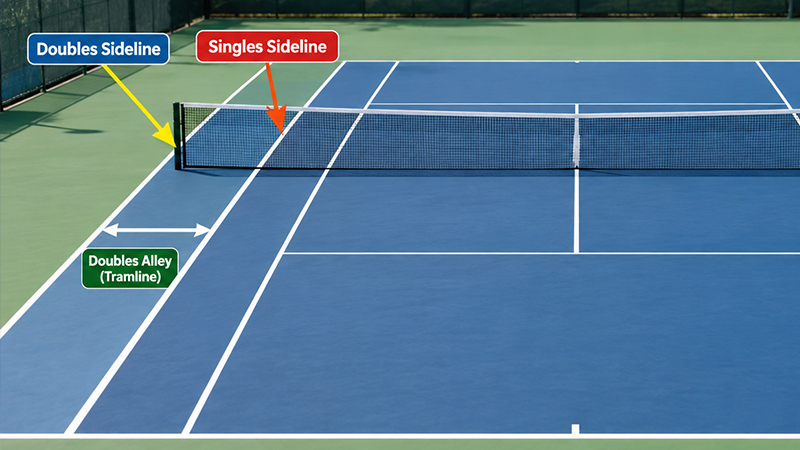

2. Sidelines and the Doubles Alley

There are two sets of sidelines running perpendicular to the net:

• Singles Sidelines: These define the width of the singles court at 27 feet.
• Doubles Sidelines: These are the outermost lines, extending the court to 36 feet.
• The “Tramlines”: The 4.5-foot (1.37 meters) gap between the singles and doubles sidelines is known as the doubles alley or tramline. In a singles match, any ball landing in this area is “out,” whereas it is “in” during doubles play.

The Service Area: The Arena of the Start

The start of every tennis point is governed by a secondary set of internal markings known as the service area.

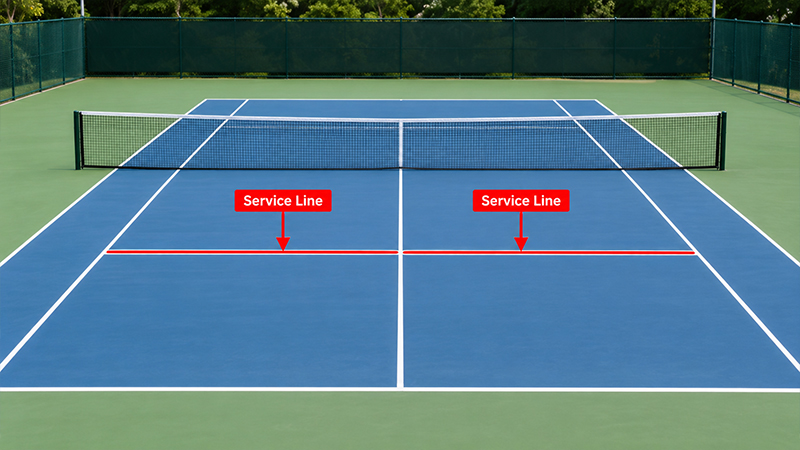

1. The Service Lines

Located 21 feet (6.40 meters) from the net on both sides, the service lines run parallel to the net. These lines mark the “back” of the service boxes. Unlike the baseline, the service line does not extend to the doubles sidelines; it stops at the singles sidelines.

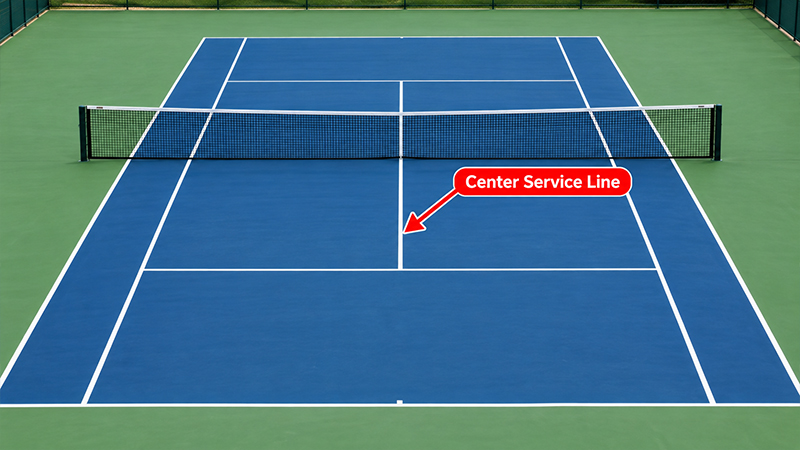

2. The Center Service Line

This line runs from the net to the service line, bisecting the area between the singles sidelines into two equal boxes: the Deuce court (right) and the Ad court (left). Each service box measures 21 feet by 13.5 feet.

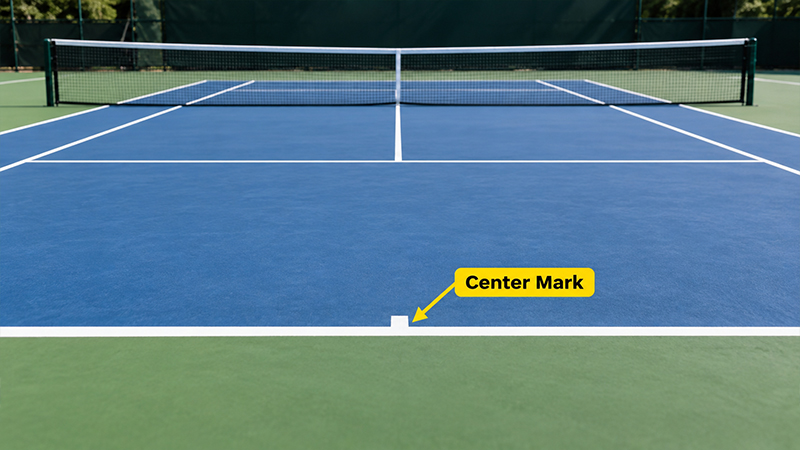

3. The Center Mark

At the exact midpoint of the baseline, a small 4-inch hash mark known as the center mark is drawn inside the court. This mark is essential for serving etiquette and rules.

The server must stand on the correct side of this mark—alternating between points—to ensure they are serving diagonally into the correct box. Standing on the mark or the wrong side of it results in a foot fault or an illegal serving position.

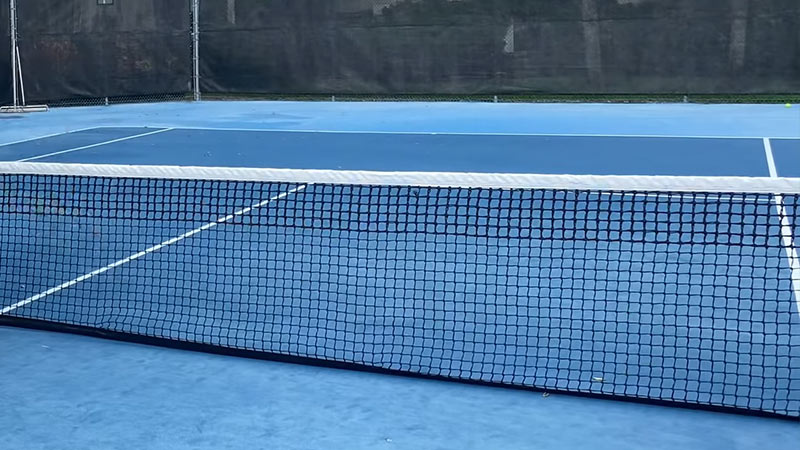

The Vertical Barrier: Net and Post Engineering

The net is the only three-dimensional marking on the court, and its height and tension are regulated with extreme precision to ensure fairness.

1. Official Heights

The net is suspended across the center of the court by a cord or metal cable attached to two posts. The official height requirements are:

• At the Posts: 3.5 feet (1.07 meters).
• At the Center: 3 feet (0.91 meters). The net is pulled down in the middle by a center strap (or band) anchored to the ground to maintain this exact 3-foot height.

2. Post Placement

The position of the net posts depends on whether the court is set up for singles or doubles. For doubles, the posts must be located 3 feet (0.91 meters) outside the doubles sidelines.

3. Singles Sticks

If a doubles net is used for a singles match, the height of the net at the “singles” position would be incorrect because the posts are too far out.

To rectify this, singles sticks must be placed 3 feet outside the singles sidelines to prop the net up to the required 3.5-foot height at those points. These sticks must not be more than 3 inches square or 3 inches in diameter.

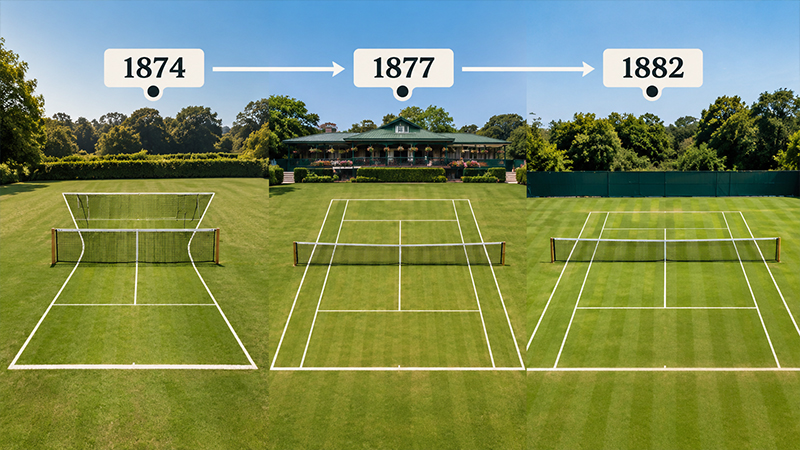

Historical Evolution: From Hourglass to Rectangle

The standardized layout we see today was not always the norm. In 1874, Walter Wingfield patented the first version of “lawn tennis” with an hourglass-shaped court.

In this original design, the net was significantly higher—between 5 and 7 feet—and the court was narrower at the net than at the baselines.

By 1877, the All England Club established the rectangular court for the inaugural Wimbledon Championships. Although some box dimensions remained larger than modern standards, the shift to a rectangle was a pivotal moment in the sport’s history.

By 1882, the net height was lowered to 3 feet at the center, and the court markings were finalized into the configuration that has remained virtually unchanged for over 140 years.

Technical Standards: Visibility, Color, and Maintenance

For professional competition, the physical quality of the lines is as important as their placement.

1. Width and Consistency

The International Tennis Federation (ITF) mandates specific widths for lines to ensure they are visible but not obstructive:

• Baselines: Up to 4 inches (10 cm).
• Center Service Line and Service Line: Precisely 2 inches (5 cm).
• Other Lines: Between 1 and 2 inches (2.5–5 cm).

2. Contrast and Safety

All lines must be the same color and provide a sharp contrast to the court surface. On traditional grass or clay courts, this is usually white.

High-quality line markings must be slip-resistant; faded or worn lines can become slippery when wet, posing a safety risk to athletes during rapid directional changes.

For facilities using hybrid clay or hard surfaces, specialized coatings are used to ensure the lines remain bright under stadium lighting and resistant to heavy use.

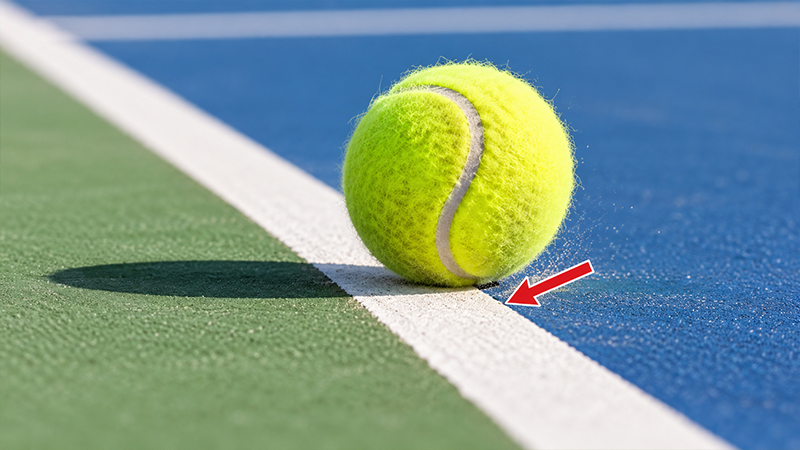

The Rules of Engagement: “In” vs. “Out”

The most common point of contention in tennis involves whether a ball touched a line.

1. The “Touch” Rule

In tennis, the lines are considered part of the playing area. If any part of the ball touches any part of the relevant line on its first bounce, the shot is “in”.

This remains true even if the majority of the ball’s “footprint” is outside the line; a mere graze of the outer edge is sufficient to keep the rally alive.

2. Technology and Integrity

At the professional level, the human eye is often supplemented by electronic officiating systems like Hawkeye.

These systems use high-speed cameras to calculate the ball’s trajectory and impact point, providing a definitive answer for close calls and removing the subjectivity that often leads to disputes in amateur play.

Strategic Geometry: How Lines Shape Strategy

Understanding the court’s dimensions allows players to maximize their tactical efficiency.

• The Middle Net Advantage: Because the net is 6 inches lower in the center than at the sides, players often choose to hit high-velocity shots over the middle of the net to reduce the risk of an unforced error.
• Serving Angles: The 21-foot distance from the net to the service line dictates the angle of the serve. Taller players can leverage their height to create steeper angles, making the ball bounce higher and further away from the receiver.
• Court Coverage: By standing near the center mark, a server or receiver can cover the maximum amount of court area with the fewest steps, a concept known as “bisecting the angle”.

Enhanced FAQ: Expert Insights

Q: Can the lines be a color other than white?

A: While white is the most common for high contrast, the official rules only state that the color must be uniform and clearly contrasted with the court surface.

Q: What happens if a ball hits the net cord and then lands on the line?

A: If the ball hits the top of the net and lands on or within the correct lines (except on a serve, which would be a “let”), the ball is in play. If it hits the net and lands on a service line during a serve, it is a let and is replayed.

Q: Why is the doubles court wider?

A: The doubles court is 9 feet wider (4.5 feet on each side) to accommodate the presence of four players, allowing for more diverse angles and net-play strategies that would be impossible on a narrower singles court.

Q: Is the net post considered “in” if the ball hits it?

A: In most scenarios, the net posts, singles sticks, and the part of the net outside the singles sidelines are considered “permanent fixtures.” If a ball hits them before landing in the correct court, the player who hit the ball loses the point.

Conclusion: The Harmony of Rule and Space

The markings on a tennis court are more than simple paint on a surface; they are the framework for a global language of athleticism.

From the 78-foot length that has endured since the 19th century to the specific 4-inch width of the baseline designed for modern visibility, every dimension serves a purpose.

For the professional, these lines represent the boundaries of discipline and the map for victory. For the facility manager, they are a standard of safety and excellence.

By adhering to these rigorous ITF standards, the sport preserves its history while providing a fair, structured arena for the next generation of champions.
